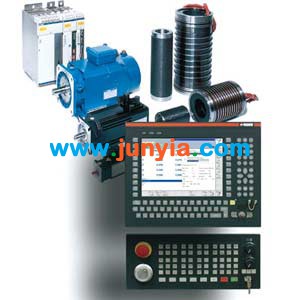

NUM AXIM power 1050 CNC system

NUM AXIM power 1050 CNC system

          NUM AXIM power1050 CNC system is a high-performance, compact, fully digital CNC system. Specially designed for all mechanical and automation applications, either simple or complex. The series because of his performance, persity and openness and distinguished.

The system is an outstanding place to name a few:

Fully compatible Num AXIM power series

PC Interface: Serial port 115 k Baud, 4 M baud rate, TCP / IP

Micro-point on the path to send Very fine point distribution across the path

◆ CNC interpolation used approximation

◆ driver sends a signal fine point

◎ running smoothly

◎ speed fairly stable

◎ different axes can be digital or analog axes when mixed applicable.

◎ generic driver Num HP Drive (MDLU2) can be used as servo axes, spindles, up to 15kw, and the linear motor and direct drive.

◎ single module NUM HP Drive (MBLD2) for servo axis and spindle, max 15kw

◎ precision measurement unit

Highlights:

◎ contour at high speed with high precision.

◎ intelligent servo-balanced

◎ Anti gap correction

◎ speed variation can be controlled with the beating

◎ high-speed operation with preview function

◎ feed rate adaptation functions

Curve detection

Circumferential speed setting

...

◎ Smooth Smooth interpolation interpolation

◎ contour curve polynomial and spline interpolation formula

◎ real operator

◎ RTCP function (rotation around the tool center point)

◎ 3D interpolation tool

◎ tandem function

◎ ARS (Advanced overtravel compensation function)

◎ without clamping shaft / spool switch

Control Panel:

◎ conventional CNC control board or the control panel or the PC

◎ machine control panel, users can edit with 55 keys, LED, potentiometer, etc.
