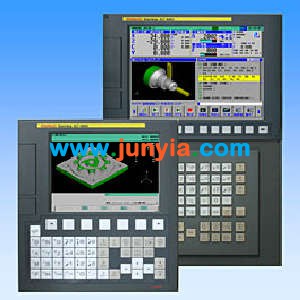

FANUC CNC system 0i-D Series

FANUC Series 0i-MD

Suitable for CNC machining centers

The maximum total number of controlled axes: 8 axes; the maximum number of axes to feed: 7 axes; the maximum number of spindles: 2-axis; number of axes: 4 axes

FANUC Series 0i-TD

Suitable for CNC lathes

1-path system the maximum total number of controlled axes: 8 axes; the maximum number of axes to feed: 7 axes; the maximum number of spindles: 3 axes; number of axes: 4 axes

2-path system maximum total control axes: 11 axes; the maximum number of axes to feed: 9 axes; the maximum number of spindles: 4-axis; number of axes: 4 axes

FANUC Series 0i-PD

Suitable for stamping CNC

The maximum total number of controlled axes: 7 axis; number of axes: 4 axes; with RAM axis function

FANUC Series 0i Mate-MD

Suitable for CNC machining centers

The maximum total number of controlled axes: 6 axes; the maximum number of feed axes: 5 axes; the maximum number of spindles: a shaft; a number of axes: 4 axes

FANUC Series 0i Mate-TD

Suitable for CNC lathes

The maximum total number of controlled axes: 6 axes; the maximum number of feed axes: 5 axes; the maximum number of spindles: 2-axis; number of axes: 4 axes
